型號名稱Name |

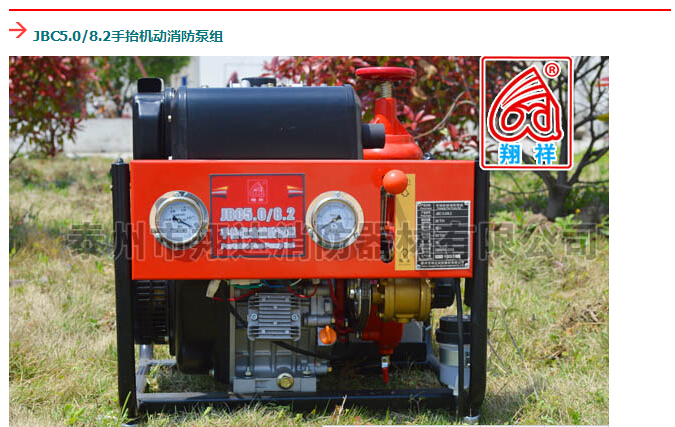

JBQ5.0/8.2手抬式機動消防泵組Portable Fire Pump Set |
|
發動機型式Engine Type |
四沖程單缸風冷4-Stroke Single-Cylinder With Air-cooled |
|
最大功率Power Output |
6.4KW(11HP) |
|
啟動方式Starting Model |
手電兩用Electic and recoil / 自回式手拉繩啟動 Recoil |
|
引水方式Suction Model |
排氣自吸引水Self-absorption By Exhaust |
|
吸深Suction Height |
7m |
|
最大流量Max Flow Rate |
45T/H |
|
額定流量Rated Flow |
29.5T/H |
|
額定壓力Rated Power |
≥0.5Mpa |
|
揚程Lift |
53m |
|
進水口徑Inlet Diameter |
65mm |
|
出水口徑Outlet Diameter |
65mm |
|
引水時間Time |
40s |
|
質量N.W |
55/43kg |
|
體積Volume |
560×520×550mm |
