點擊圖片查看大圖該產品為晝夜兩用型的超遠距離微光夜視觀察儀。采用高級像管和先進的光學系統
產品特點
1.高放大倍率 2.遠距離觀察（微光下3800米
3.先進的光學系統 4.高分辨率，防強光
5.精致耐用的材質 6.重型望遠鏡三腳架
7.可靠易操作性強 8.兩年保修期
Product De

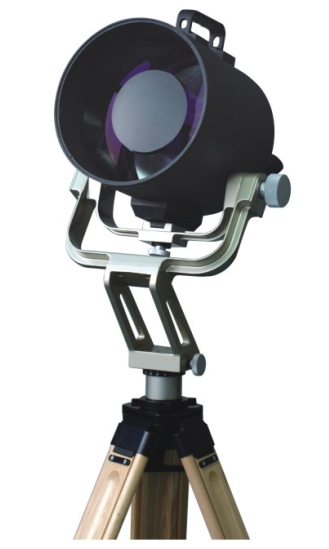

Large ultra long-range shimmer The product has a monocular and binocular night vision two specifications. Using advanced image tube and advanced optical system with high resolution features. The product uses the Russian quasi-generation image intensifier, with anti-glare and anti-glare function, can be used for military observation, surveillance, customs drug enforcement, border and coastal surveillance, police check smuggling, water monitoring, ship observation.
Product Features
1 high magnification2 long-distance high-magnification observation (3800 meters under dim light)
3 advanced optical system 4 high-resolution, anti-glare
5 exquisite and durable material 6 heavy telescope tripod, automatic brightness adjustment
7 reliable and easy maneuverability 8-year warranty and lifetime maintenance
|
Classification像增強器等級 |
OMNI III,IV準三代或三代 |
|
Magnification倍率（倍x） |
Day白光22x，Night夜視16x |
|
Objective Lens Focus物鏡焦距（毫米mm） |
413 |
|
Objective Lens dimeter物鏡直徑（毫米mm） |
310 |
|
FOV視場（度°） |
3 |
|
Detection range觀察距離（米m） |
3800 |
|
Focus range聚焦范圍 |
200-∞ |
|
Resolution typical分辨率 （線對/毫米lp/mm） |
63-72 |
|
Diopter adjustment目鏡視度調節范圍（屈光度） |
+4/-4 |
|
Dimension外型尺寸（毫米mm） |
530x410x310 |
|
Net weight主機 ，三腳架重量（凈重公斤kg）
|
17和11 |
|
Battery type電源類型 |
1XCR123lithium battery一節3V鋰電池 |
|
Power supply電源電壓（伏v） |
2.8±0.8 |
|
Operating temperature工作溫度范圍（℃） |
-40/+50 |
|
Humidity25℃ 相對濕度 |
98% |
|
Battery lifetime連續工作小時hours |
80 |
